Custom Wire &
Cable Solutions
From concept to delivery, we provide end-to-end custom wire and cable manufacturing. Tailored materials, precise specifications, and rigorous quality control for your unique requirements.

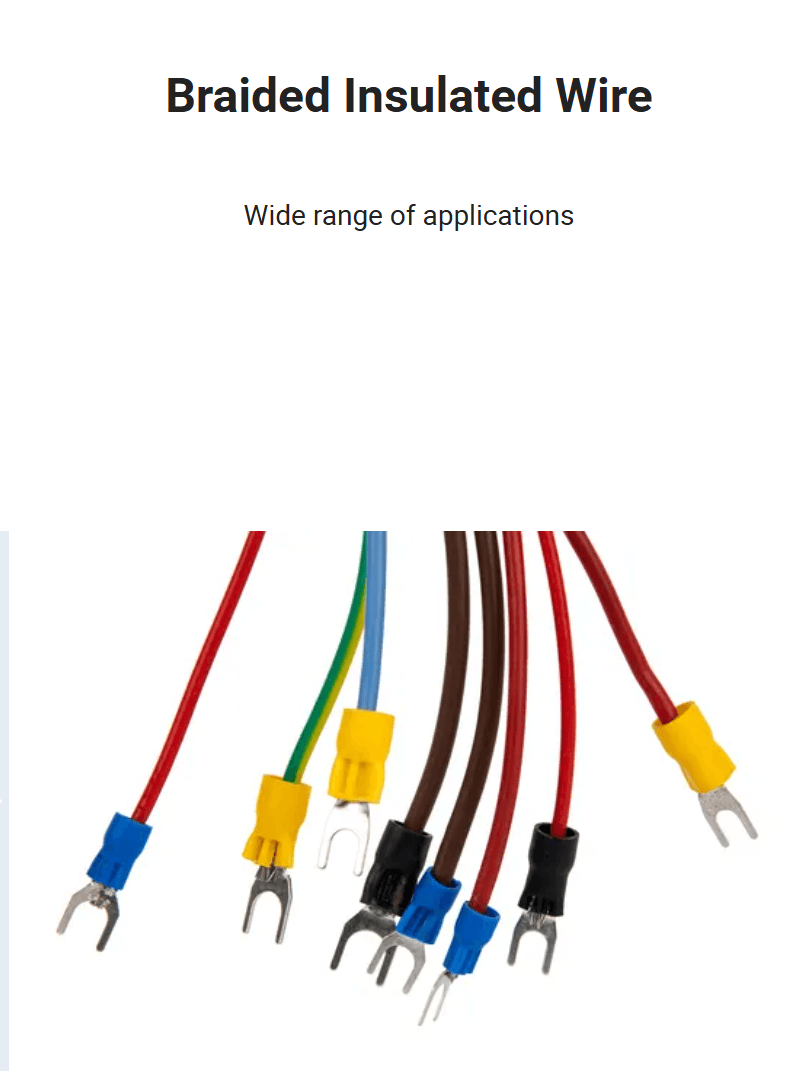

Braided Insulated Wire
Wide range of applications
Customization Capabilities
Every aspect of your wire and cable can be customized. We work with you to define exact specifications that match your application requirements.
Wire Type
Silicone, PVC, XLPE, fiberglass braided, Teflon, and more insulation types available for any environment.
- Silicone Rubber
- PVC
- XLPE
- PTFE/Teflon
- Fiberglass
- Low Smoke Zero Halogen
Wire Gauge (AWG)
Full range of conductor sizes from ultra-fine signal wires to heavy power cables.
- AWG 4 ~ AWG 30
- 0.08mm² ~ 25mm²
- Single or Multi-core
- Custom Cross-sections
Temperature Rating
Engineered for extreme conditions from cryogenic cold to furnace-level heat.
- -60°C to +450°C
- Standard (80°C)
- High Temp (200°C)
- Ultra High (300°C+)
Color & Marking
Custom colors, stripes, and printing for easy identification and compliance.
- Any RAL/Pantone Color
- Stripe Marking
- Custom Logo Printing
- UL/CCC Markings
Shielding & Jacket
Multiple shielding options for EMI protection and environmental sealing.
- Braided Copper Shield
- Aluminum Foil Shield
- PVC/Silicone Jacket
- Flame Retardant
Terminals & Connectors
Pre-terminated assemblies with fork, ring, pin, blade, and custom connectors.
- Fork Terminals
- Ring Terminals
- Pin Connectors
- Custom Plugs
- JST/Molex
Cable Construction
Single conductor, multi-core, flat ribbon, coiled, or any custom construction.
- Single Core
- Multi-Core (2-37)
- Flat Ribbon
- Coiled/Spiral
- Sheathed
Voltage Rating
From low-voltage signal wires to high-voltage power cables for industrial use.
- 300V Signal
- 600V Standard
- 1000V Power
- 3000V+ Special
Custom Order Process
Our streamlined 6-step process ensures your custom wire and cable order is handled with precision from initial concept to final delivery.
Requirement Discussion
1-2 DaysShare your application needs, operating environment, and performance requirements. Our engineers will analyze your requirements and propose optimal solutions.
Technical Design
2-3 DaysOur R&D team creates detailed technical drawings and material specifications. We select conductor material, insulation type, shielding, and construction to match your exact needs.
Sample Production
5-7 DaysWe manufacture prototype samples using production-grade materials and processes. Samples are available for your testing and approval before mass production.
Quality Testing
2-3 DaysComprehensive testing including voltage withstand, insulation resistance, temperature cycling, flex life, and any custom test your application requires.
Mass Production
7-15 DaysAfter sample approval, we begin full-scale production on our 6 extrusion lines. 100% in-line quality inspection ensures consistency across the entire batch.
Packaging & Delivery
3-7 DaysCustom packaging and labeling per your requirements. We support sea freight, air freight, and express delivery to 50+ countries worldwide.
Industry Applications
Our custom cables serve diverse industries. Tell us your application and we will engineer the perfect solution.
Home Appliances
Air conditioners, washing machines, refrigerators, and small kitchen appliances. We supply Haier, Hisense, TCL, and more.
Industrial Equipment
Transformers, sensors, electrical control cabinets, and power distribution systems for heavy industry.
Automotive & EV
High-temperature engine wiring, battery cables, and custom harnesses for automotive and electric vehicle applications.
Lighting & Electronics
LED driver wires, connector assemblies, and miniature cables for lighting fixtures and consumer electronics.
Renewable Energy
Solar panel cables, wind turbine wiring, and weather-resistant cables for renewable energy installations.
Medical Devices
Biocompatible, ultra-flexible, and precision cables for medical equipment and devices.
Technical Specifications
A comprehensive overview of customizable parameters. Every parameter below can be tailored to your exact requirements.
| Parameter | Available Options | |||||
|---|---|---|---|---|---|---|
| Conductor Material | Tinned Copper | Bare Copper | Nickel-plated Copper | Silver-plated Copper | Copper Alloy | |
| Conductor Stranding | Solid | 7-strand | 19-strand | Multi-strand (flexible) | Ultra-fine strand | |
| Insulation Material | Silicone Rubber | PVC | XLPE | PTFE (Teflon) | FEP | Fiberglass |
| Outer Jacket | Silicone | PVC | Nylon | Cotton/Fiber Braid | Stainless Steel Braid | |
| Temperature Range | -60 to +200°C | -40 to +105°C | -40 to +125°C | -60 to +250°C | -200 to +450°C | |
| Voltage Rating | 300V | 600V | 1000V | 3000V | Custom | |
| Certifications | UL | CCC | CE | RoHS | REACH | |
| Packaging | 100m Coil | 200m Coil | Reel (custom) | Cut to length | Bulk spool | |
Custom Order Inquiry
Tell us about your project. The more detail you provide, the faster we can prepare an accurate quotation.
